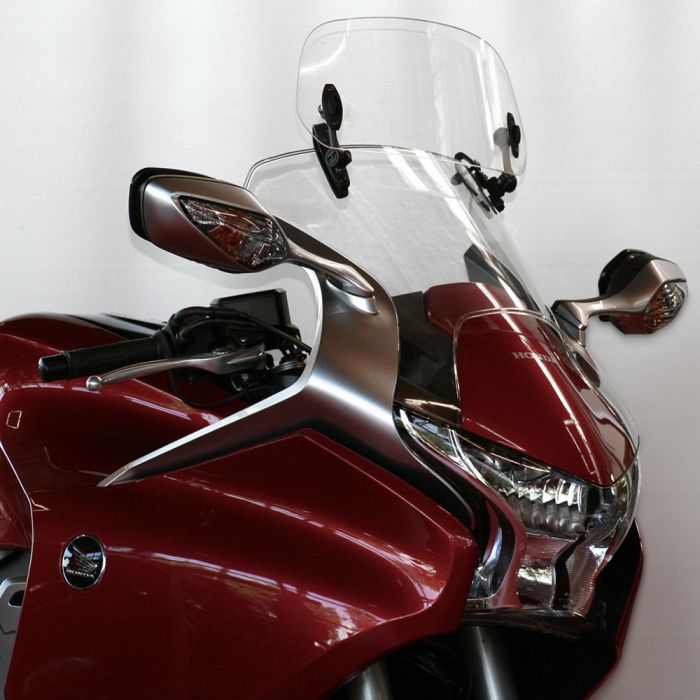

MRA X-Creen Touring XCTA add-on Spoiler & Hinges Assembly for Honda VFR1200F 2009-2017

Where no complete MRA adjustable screen has been produced, this add-on X-Creen is a perfect alternative solution for the taller, long-distance rider, who wishes to deflect airflow on their bike for the most comfortable ride.

The X-Creen hinge system is produced from a virtually unbreakable Carbon-Fibre Reinforced Polyamide for maximum longevity and durability. It is supplied with extension arms and Double Hinges to provide an increased range of movement and adjustment - giving a total up/down vertical range of upto + or - 110mm, while still providing the same adjustment of the spoiler angle, regardless of the spoiler’s height.

Dimensions

• Width of spoiler/aerofoil: 360 mm (14.2 inches)
• Overall height of spoiler/aerofoil: 163 mm (6.4 inches)
• Height in centre of spoiler/aerofoil: 128 mm (5.0 inches)
• Lateral mounting width between hinge bases: 260 mm (+/- 10 mm, dependent upon screen curvature)

Installation simply requires four small holes drilling for permanent attachment to your bike's screen, or it can be attached and detached – without drilling – with the included XCC Tension Clamp clip-on brackets.

X-creen is a thoroughly tested and highly developed German made product, but, while it will enable significant alteration to airflow, no guarantees can be provided for its performance in any specific installation due to variations in bikes' screen heights, rider's height, helmet and clothing worn.
